Fireproof Environmental Friendly Divider Curtain For Large Spaces

Brand Name : Flyon

Model Number : Divider curtain

Place of Origin : China

Certification : CE/GB-8624 (B2 level)

MOQ : 100 Square meters

Price : 46-98 dollars per sqm

Packaging Details : Wooden Box

Delivery Time : 15 - 25 working days

Payment Terms : T/T,Western Union

Supply Ability : 5000 square meters per month

Material : PVC/ High Strength Fabric

Warranty : 5-8 Years

Color : Blue, yellow, red/Customized

Size : Customized Size

Packing : Wooden Box

Tear Resistance : GB/T 3917.3-2009

Contact Now

Electric Control System Fireproof Environmental Friendly Divider Curtain for Large Spaces
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg

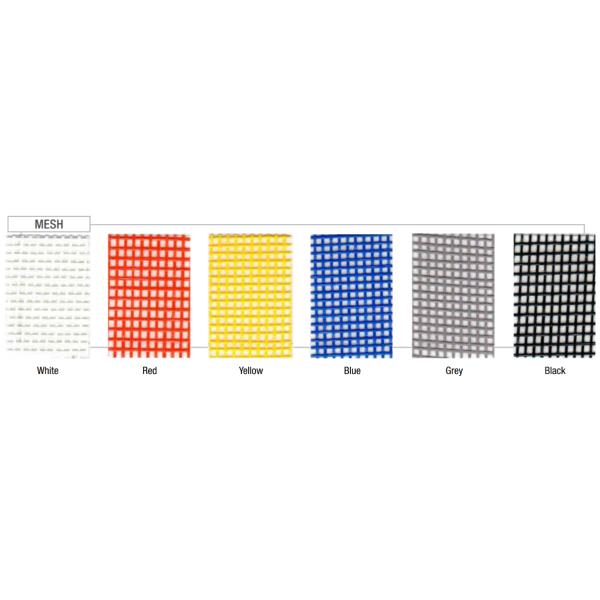

Color Choices
Fireproof Environmental Friendly Divider Curtain For Large Spaces Fireproof Environmental Friendly Divider Curtain For Large Spaces
Model Options
Fireproof Environmental Friendly Divider Curtain For Large Spaces
Installation Safety Requirements
• A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or the wall.
• A safety clearance of at least 15 cm should be left on the side without motor drive system.
• At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground.
Electric Control System
High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.
Product Advantages
  • Double layer curtain with high quality PVC for superior sound absorption
  • Partial netting design allows natural light transmission
  • Complete system includes all necessary materials and segments with aluminum truss carrier structure
  • Environmentally friendly, tear resistant, high strength, and fireproof construction
  • Easy to use system available in various configuration options

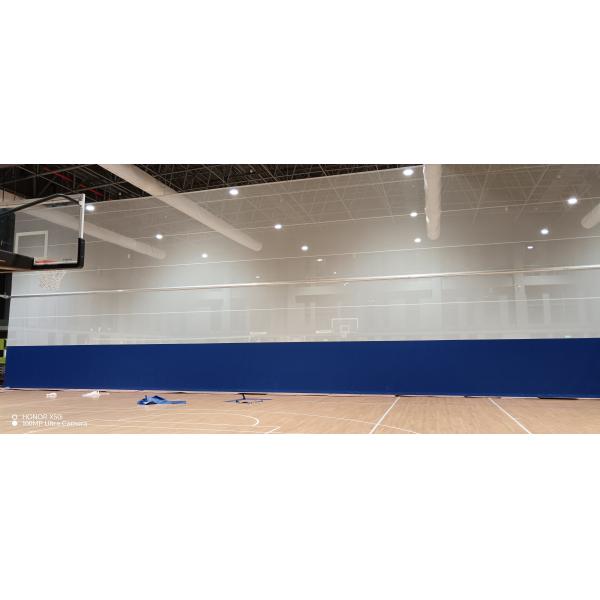

Project Presentation
Fireproof Environmental Friendly Divider Curtain For Large Spaces Fireproof Environmental Friendly Divider Curtain For Large Spaces Fireproof Environmental Friendly Divider Curtain For Large Spaces Fireproof Environmental Friendly Divider Curtain For Large Spaces
